How to Connect the 2nd Gene RGB Ford Bronco Illuminated Emblems (2021-Present)

When installing your LED letters, please ensure they are placed in the correct order to spell B-R-O-N-C-O.

Important Wiring Note:Pay close attention to the wiring sequence. Each wire is marked with a yellow label indicating the corresponding letter (e.g., R). Connect the wires to the letters accordingly.

Letter O ①: This wire must be connected to the first ‘O’ in BRONCO.
Letter O ②: This wire must be connected to the second ‘O’ at the end of BRONCO.
Ensuring the correct sequence will guarantee the lighting effects function perfectly.

RGB Ford Bronco Illuminated Emblems (2021-Present)
（1）. Download the APP : ZENGGE by QR code（Image below）, or search and download on Google Play or AppStore
（2）.Turn on the Bluetooth of your phone（3）. Open ZENGGE app
（4）.Turn on the power of the emblem，Red wire connected to ACC fuse, black wire connected to ground（make it electrified.Please use a power supply voltage of 12V.）
（5）.Start setting up.（The steps are as follows）

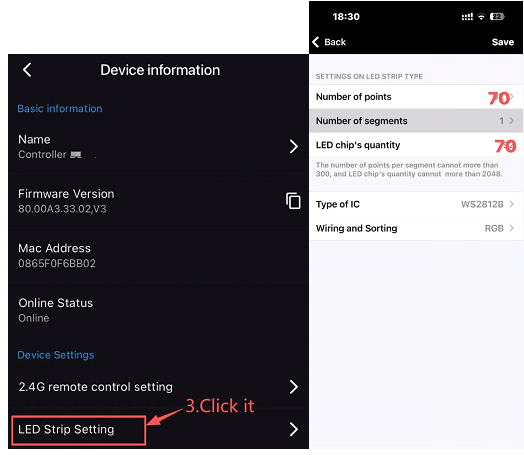

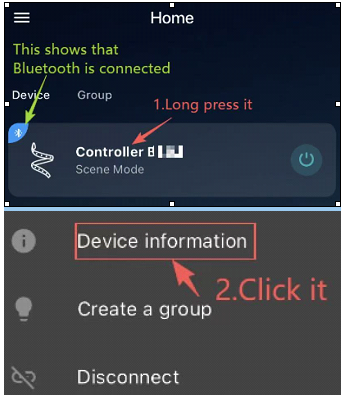

1、long press the controller 2、select device information 3、select LED light strip settings 4、adjust parameters 5、Save 6、return and click the controller 7、set your favorite mode.
If you encounter any issues, please contact us at the following phone/WhatsApp number: +1-281-425-5242.

Here is the English rewrite for your LED light control modes:

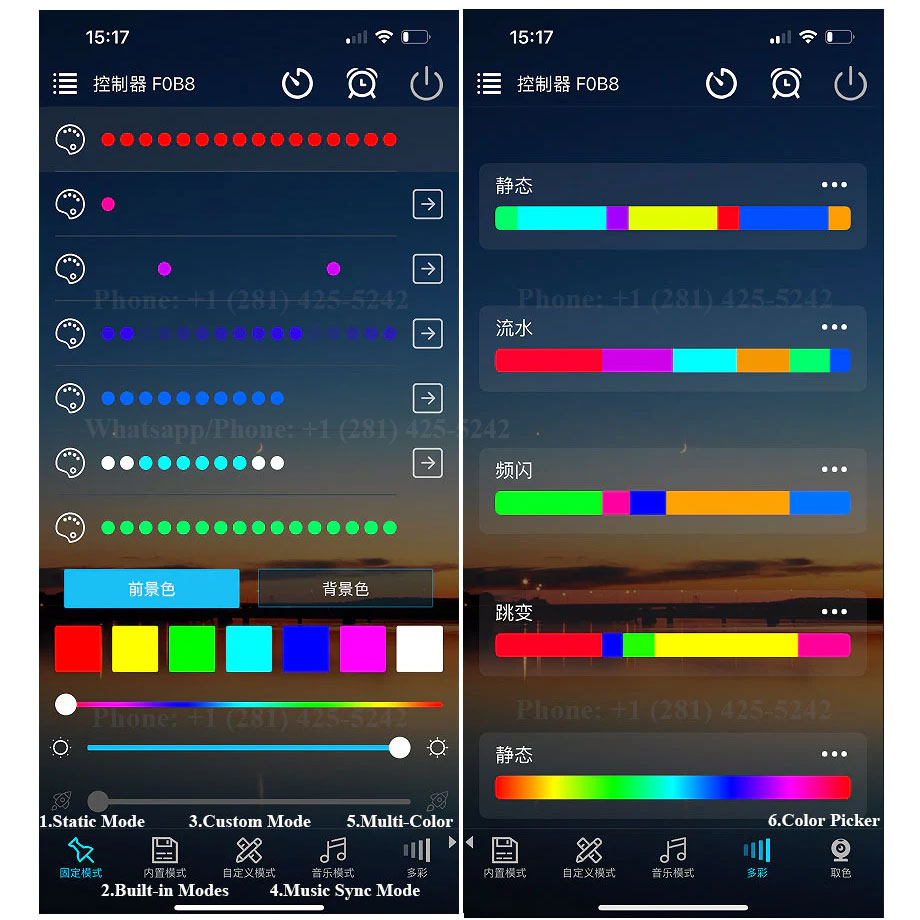

⚙️ Understanding the ZENGGE App Control Modes

The ZENGGE app offers six main modes for full customization of your 2nd Generation Multi-Color RGB Bronco Illuminated Emblems:

1. Static Mode

This section allows you to choose your primary color display:

• First Palette: Select from a range of stable, solid LED colors (e.g., solid red, solid white, etc.). Once selected, this color will not change unless you manually adjust it.
• Rest of the Palettes: These offer dynamic styles (e.g., simple fades or shifts) that you can select and also customize the specific LED colors used within that style.

2. Preset Modes (Built-in Modes)

• This mode offers a library of various pre-designed animation sequences and effects. Simply select from the extensive list of built-in modes to immediately activate a dynamic pattern.

3. Custom Mode

This feature gives you advanced control to design your own lighting effects:

• Custom Animations: You can choose the animation sequence you want.
• Stable Color Combination: You can set a specific animation and choose a solid LED color to display.
• Important Note: Even when combined with a stable color, the custom sequence cannot stay on permanently. It will cycle through the animation and then display the chosen LED color before repeating the cycle after a few minutes.

4. Music Sync Mode

This mode enables dynamic lighting effects that are synchronized to audio, often displayed in patterns resembling a Sound Column (or visual equalizer).

The feature offers two primary ways to utilize music synchronization:

• Built-in Music Dynamic Effects: The LED emblem will sync its colors and animation patterns to music or ambient sounds. The resulting animation visually resembles a dynamic Sound Column.
• Custom Recording: You can record a short piece of music directly within the app. You can then set and save the specific color patterns for this recorded segment, creating a customized, repeatable animation sequence that mimics the recorded track.

5. Multi-Color

This mode highlights the main feature of the 2nd Generation emblem:

• Here you can access the full range of Multi-Color RGB options. This includes both dynamic Multi-Color styles (where colors change sequentially) and one stable Multi-Color blend that displays multiple hues simultaneously.

6. Color Picker

• This convenient tool allows you to “scan” or sample a color using your phone’s camera. You can point the camera at any object or color you like, and the app will instantly match and set the emblem’s LED color to that sampled hue.

🎥 Tutorial and Guidance

To learn exactly how to set up the Custom Mode, please refer to our tutorial video:

This video uses the same control app (ZENGGE) as your RGB Bronco Illuminated Emblems, so you can follow the instructions exactly as a direct reference.

🤝 Technical Support

If you still have any questions or require further assistance with setting the Custom Mode, please feel free to contact our technical support team:

• WhatsApp Support: +1 (281) 425-5242

For assistance, please contact us via WhatsApp and include any relevant photos or videos of the issue.

How to Install the Bronco Light Up Grille Letters (2021-Present) | Video Instruction

Frequently Asked Question:

When installing the 2nd Generation RGB Ford Bronco Illuminated Emblems (2021-Present), I found that the colors are not corresponding. For example, when I choose the red LED light, it’s not displaying as red. How do I solve this problem?

Solution:Change the wiring and sorting from RGB to GRB.
